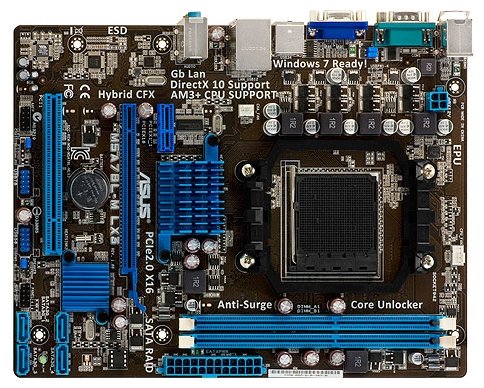

Материнская плата ASUS M5A78L-M LX3

Печать
 Цена: 3700р.

Процессор
  • AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
  • AMD Cool 'n' Quiet™ Technology
  • Supports CPU up to 95 W
Чипсет
  • AMD 760G (780L)/SB710
Оперативная память
  • 2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • * AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
System Bus
  • Up to 5.2 GT/s HyperTransport™ 3.0
Графика
  • Integrated ATI Radeon™ HD 3000 GPU
  • VGA output support : RGB port
  • - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  • Maximum shared memory of 1024 MB
  • Hybrid CrossFireX™ Support *1
  • Supports DirectX 10
Слоты расширения
  • 1 x PCIe x16
  • 2 x PCIe x1
  • 1 x PCI
Хранилище данных
  • AMD SB710 controller :
  • 4 x SATA 3Gb/s port(s), (Blue)
  • Support Raid 0, 1, 10, JBOD
Локальная сеть
  • Qualcomm Atheros 8161/8171, 1 x Gigabit LAN Controller(s)
Звук
  • Realtek® ALC 887 8-Channel High Definition Audio CODEC
Порты USB
  • 8 x USB 2.0 port(s) (4 at back panel, (Black), 4 at mid-board)
Разъемы на задней панели
  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse (green)
  • 1 x D-Sub1 x LAN (RJ45) port(s)
  • 4 x USB 2.0
  • 1 x COM port(s)
  • 3 x Audio jack(s)
Разъeмы на плате
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x System panel(s)
Форм-фактор
  • uATX Form Factor
  • 24.4 x 18.8 см
